产品展示 >> 纸尿裤设备>> 全伺服大环腰婴儿尿裤机

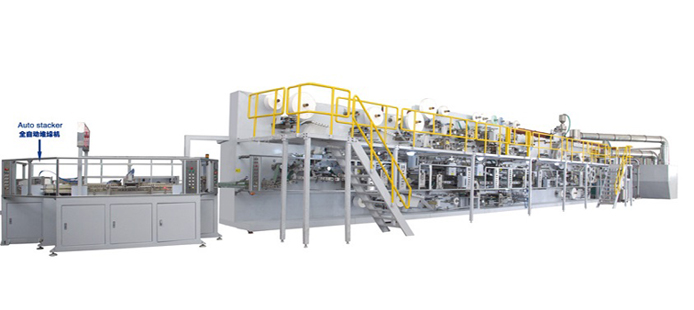

全伺服大环腰婴儿尿裤机

打印】 【 【关闭】 浏览数:19687   视频展播: 暂无视频

One.  Main Parameter:
Performances 性能

1.       Volume (million pieces/ year) 产量
40-140 million pieces
2.       Designed Speed 设计转速
600pcs/min
3.       Stable Speed 稳定转速
600pcs /min (I shape)
400-500pcs/min (Big waist band diaper)
4.  Passing rate 合格率
≥ 98% (Not include the glue applicator, Auto Splicing)
       不包括胶机和自动接料


 Technical Parameter: 技术参数

1.       Power Supply 电源
3 phase, 5 wires  (380v, 50HZ)  3相5线
2.       Power Installed 装机功率
280KW include Glue filter  280 KW包括胶滤器
3.       Power Used 用电量
250KW
4.       Electric wire 电线
3×120mm2+1×50mm2+1×25mm2
5.       Compressed Air Supply 压缩空气供应
0.6~0.8Mpa
6.       Compressed Air Absorption 压缩空气吸附
4000 Nl/min
7.       Machine Size 机器尺寸
28.0m× 7.0m× 3.5m(L× W× H )
8.       Working Size 台面尺寸
39m× 9.0 ′5.0m  (L× W× H )
9.       Machine Weight 机器重量
about 50 Tons (whole production line) 整机约50吨
10.   Machine Color: 机器颜色
White( confirm with customer) 白色 (客户指定)
11.   Machine Direction: 机器方向
From Left to Right (can be designed as customer’s demand)
从左到右, 客户指定
12.   Containers: 集装箱
5′ 40 HQ containers  5′ 40高柜
13.   Finish Product Size: 成品规格
XL、L、M、S
(Based on Customer’s requirement)据客户要求

  Max ****
 Min 最小
Length长度
 550mm
 350mm
Width宽度
 350mm
 200mm
尿裤结构: 双层防侧漏无纺布+面层无纺布(里外各一条橡筋)+表层复合无纺布+防侧布+传导层短切(可做全长)+【上卫生纸+芯体+棉芯+SAP+下层卫生纸】+在线复合底膜(底膜定位)+前腰贴(卡通在线色标定位)+S切(在线复合)+在线成形弹性腰围(虚线切285mm)+立体护围橡筋(外翻4+4)+腿部护围橡筋(3+3)。
Diaper Structure:Double layer anti-side leakage non-woven fabric + non-woven fabric layer (inside and outside a rubber band) + surface composite non-woven fabric + anti-side cloth + conductive layer chopped (do full length) + 【toilet paper + + Cotton core + SAP + lower toilet paper + online composite base film (base film positioning) + front waist stickers (cartoon online color positioning) + S cut (online composite) + online forming elastic waist (dotted line cut 285mm) + stereo Elastic (valgus 4 + 4) + Legs Elastic (3 + 3)

Environmental Data 环境数据

1.       Temperature 温度
10 - 35°C
2.       Humidity 湿度
55% RH ±5
3.       Noise Level 噪音值 (Measured at a distance of 1 meter)  在1米距离测量
≤ 87 dB
